Where to Install Grab Bars on Wall Around Bathtub in [year]? 2 EASY Ways

In this article, we shall focus on where to install grab bars on the wall around bathtub and shower stall.

Using a bathtub, toilet and shower can be a problem when balance and strength are an issue. Luckily, grab bars can make it safer for the family especially for the elderly and the kids. That is why it is important to find the safest place to install them in the bathroom and toilet.

Where to install grab bars on the wall around the bathtub and shower stall

Where to install grab bars on the wall around the bathtub and shower stall
Image Credits – grabbarsblog.com

Grab bars can be installed vertically, horizontally, or at an angle in wall studs.

In the bathtub or shower stall, you can install the grab bars in the following locations.

  1. Vertically on the wall at the entrance to the tub or shower stall.
  2. Horizontally on the sidewall of the tub or stall. This bar should be long enough.
  3. If you have a shower seat, install another bar near the seat at an angle.
  4. Vertically near the faucet handles for the person bathing to steady themselves when adjusting the showerhead and the flow of the water.

How high should grab bars be installed?

Once you identify the appropriate locations where the grab bars should be installed, you need to know the appropriate height as well.

So, how high should grab bars be installed?

Many people will tell you that there is no predetermined height. However, the primary users are the main determinants.

According to ADA requirements, grab bars should be installed about 33 to 36 inches above the floor of the tub or shower.

However, the most appropriate height is where the user feels more comfortable and secure. Thus, the height recommended by ADA can be adjusted to favor the user.

Where should toilet grab bars be placed?

Where should toilet grab bars be placed
Image Credits – improveitusa.com

Proper grab bar installation in your toilet is crucial.

It is recommended that you add at least 2 grab bars in the toilet. One on the sidewall and another on the back wall.

Here are some of the guidelines you should observe when installing toilet grab bars:

Here is the guideline about the placement of toilet grab bars:

  • You should install a 32-inch grab bar on the wall behind the toilet. This is important for when assisting someone to sit on the toilet or to stand.
  • A 42-inch bar should be installed on the sidewall that is close to the bathroom. The bar will help the toilet user to sit or stand with ease.
  • Just like the tub and shower stall grab bars, toilet bars should also be installed about 33 to 36 inches above the floor. However, they should only be installed horizontally.

See also: Best bathtub to shower conversion kit


How do you install grab bars without studs?

When installing grab bars, it is important to ensure there is reinforcement in the walls. This could be wall studs or reinforced walls.

However, nowadays you can attach grab bars to any wall without using the wall studs.

You do this by;

  1. Using a mounting system from Moen known as the secure mount.
  2. Choosing suction cup grab bars over the traditional ones
How do you install grab bars without studs

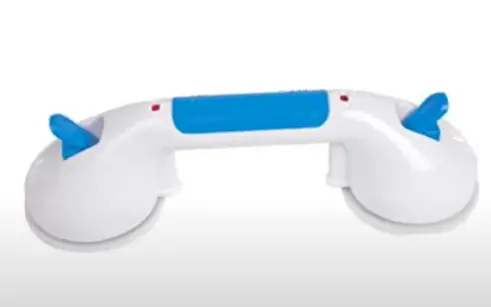

Suction grab bar

See also: Best suction grab bars for bathroom


Factors that determine where to install grab bars in bathtub, shower or toilet

There are a few factors that determine where to place them grab bars such as aesthetic preferences and the physical needs of the user.

1. Height and physical needs.

It would be best if you considered the height of every person who will be using those bars.

A bar place in the wrong place is not useful because it can’t prevent a fall or provide support.

It is important to seek advice from a professional before installing the bars in the bathroom to be used by people with mobility issues like the elderly.

2. Aesthetic preferences

You may think that adding a bar to your bathroom or toilet requires you to alter the style of your bathroom.

Fortunately, there are modern bars that are stylish and safe. So, adding them to the bathroom will actually enhance their appearance.

What are the ADA requirements for grab bars’ installation in the bathroom?

Grab bars have specific requirements that must be fulfilled according to ADA standards.

To start with, ADA requires all grab bars to be horizontal or vertical and comfortable to hold for any person.

For instance, they require that grab bars used by kids aged 3 to 12 years should 18-27 inches.

When installing, ensure that the space between the bars and the walls is about one and a half inches so that the users can grab the bar easily.

In addition, ADA requires that all items below the bars or at the edge are placed one and a half inches away. Those above the grab bars should be placed about 12 inches higher.

It is important to ensure the bars are strongly fixed so that they provide enough support despite the weight of the user. In addition, ensure that the grab bars, their fittings, and their support structure weigh at least 250 Ibs for safety reasons.

Most notably, the bars and anything near them must have rounded edges since sharp edges pose a risk to the users.

Conclusion

Identifying the safest and convenient place to install the grab bars in your room is very necessary. For safety and comfort, bars should be installed in the toilet, shower, and in bathtub bathroom the user needs helps to balance themselves.

Where to install grab bars on the wall around the bathtub, shower or toilet should be one of the questions you ask after you purchase the bars.

It is important to hire a professional if you are not a DIY person. However, if you feel you can install them yourself, make sure you follow the guidelines issued by the manufacturer.
